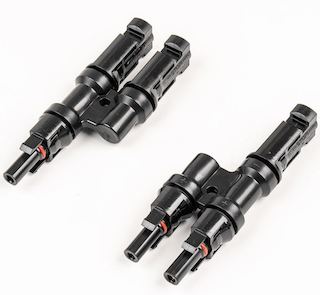

2 to 1 Solar Panel T Branch Connector Parallel Adapter

This quality 2 to 1 Solar Panel T Branch Connector Parallel Adapter by Dsola is a precision-engineered tool for optimizing DC power distribution. This 2 to 1 Solar Panel T Branch Connector is designed for high-voltage stability, allowing installers to link two separate modules or strings effortlessly. By focusing on a compact, tool-free design, we ensure that your system expansion or initial setup remains secure and weatherproof, meeting the rigorous demands of modern photovoltaic installations.

Product Characteristics

● Tool-Free Quick Connection
The integrated snap-lock mechanism allows for rapid click-to-lock assembly. This 2 to 1 MC4 T Branch Connector for Solar Panel arrays eliminates the need for specialized tools, facilitating fast on-site installations and easy maintenance adjustments.

● Heavy-Duty Weatherproof Protection
Engineered with an IP67 waterproof rating, the connectors utilize high-quality sealing rings to block moisture and dust. This ensures consistent performance in extreme outdoor conditions, including heavy rain, snow, and high-humidity environments.

● Minimal Power Loss
The internal contacts are made of high-conductivity tinned copper, ensuring a low-resistance bond. This maximizes the current transfer from your modules to the inverter, preventing heat buildup and energy waste within the circuit.

● Rugged Thermal Resilience
Constructed from reinforced PPO material, the 2 to 1 Solar Panel T Branch Connector Parallel Adapter maintains its structural integrity across a wide temperature range. It is highly resistant to UV radiation and aging, ensuring a service life that matches the longevity of your solar panels.

● Space-Saving Compact Design
The slim T-branch profile is ideal for use in tight spaces, such as junction boxes or crowded rooftop mounting rails. It allows for organized cable management without adding unnecessary bulk to the system layout.

Application

Large-Scale Array Optimization
Used to group module pairs within ground-mounted solar farms to streamline the main feed to the inverters and improve overall power collection efficiency.

PV String Combiner Systems
Essential for merging multiple strings within combiner boxes, allowing several series-connected panel groups to feed into a single DC distribution line.

System Extensions and Upgrades
An ideal solution for expanding existing arrays. It allows for the addition of new panels without requiring a total overhaul of the current wiring infrastructure.

Portable and Emergency Setups
Provides a reliable, fast-deployment connection method for temporary solar installations in remote areas or emergency response events where time is critical.

Why Use a T-Branch Connector?

The primary reason to use a 2 to 1 Solar Panel T Branch Connector Parallel Adapter is to increase the total current of your solar array while keeping the voltage consistent. By connecting panels in parallel, you can meet the high-current charging requirements of specific battery controllers or inverters. Furthermore, T-branch connectors drastically reduce the amount of extension cabling and individual connectors needed, which minimizes potential failure points and lowers the total balance-of-system (BOS) cost.

FAQ

Q: Can I use these to connect different sizes of solar panels?
A: It is highly recommended to only use these connectors for panels with identical voltage ratings. Connecting panels with mismatched voltages in parallel can lead to power being forced back into the lower-voltage module, causing energy loss and potential damage.

Q: Are these compatible with standard 1000V and 1500V systems?
A: Yes, our T-branch adapters are designed to operate safely within modern high-voltage DC environments, providing the heavy-duty insulation required for both residential and utility-scale voltages.

Q: Do I need a special tool to disconnect them?
A: While they lock securely by hand to prevent accidental disconnection, we recommend using a standard solar spanner tool to depress the locking tabs for a safe and easy release during maintenance.

Product Parameters

SOLAR T BRANCH CONNECTOR SYSTEM
Technical data
Connector system				MC4 CONNECTING		Insulation material		PPO
Rated current				Certified by 50A		Locking system plug connectors		Snap-in (nur/only MC4)
Rated voltage				1500V DC (IEC) 600V DC (UL)		Flame class		UL94-HB / UL94-V0
Ambient temperature range				-40°C...+90°C (IEC) -40°C...+40°C (UL)		Safety class		II
Degree of protection, mated				IP67		Contact system		MC Multilam
Contact resistance of plug connectors				0,5mΩ		Type of termination Crimpen		Crimping
Contact material				Copper, tin plated		Cable Size		2.5mm2, 4mm2, 6mm2
Insertion Force /With Draw Force				<50N/>50N		Warranty		25 years
