MC4 Connector Spanner Wrench Tool for Solar Panel

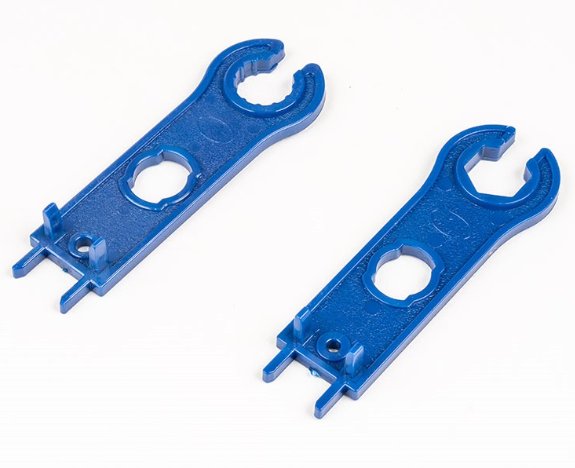

The MC4 Connector Spanner Wrench Tool for Solar Panel by Dsola is a specialized open-end wrench set for for assembling and disassembling photovoltaic connections. Made from high-quality, lightweight plastic, this Spanner Wrench Disconnect Tool for Solar Panel Wire Connector offers a firm grip without marring the connector surfaces. It is engineered to fit the unique geometry of standard PV plugs, allowing for quick screw-down and easy separation of locked joints. The double-ended design handles both assembly and disassembly, allowing to secure the base and body of a connector in one motion. For disconnects, the integrated pin feature slides between mated connectors to unlock the latch, letting you separate them cleanly without pulling on cables. It is an indispensable part of any solar system toolkit.

Product Features

● Dual-Wrench Efficiency
Sold as a PV Solar Panel Connector Spanner Pair Disconnect Tool Set, these wrenches allow you to hold the connector base with one hand while tightening the cable gland with the other. This prevents the internal cable from twisting during final assembly.

● High-Impact Reinforced Plastic
This MC4 Connector Spanner Wrench Tool for Solar Panel is made from high-quality, lightweight plastic that is durable enough for daily site use but soft enough to avoid scratching or cracking the Connector Tools Spanner Wrench Assembly and Disassembly for Solar Panel Cable Wire components during high-torque tightening.

● Universal Pin System
The integrated pins are designed to fit into the locking tabs of standard connectors. This Solar Panel Connector Plug Removal and Disconnect Tool allows you to unlock and pull apart connections easily without using screwdrivers that can damage the plastic housing.

● Portable and Ergonomic
Small and lightweight enough to be carried in a pocket or tool belt. The ergonomic grip ensures that even during a full day of installation, the operator can maintain a firm hold with minimal hand fatigue.

● Compatibility with Custom Wires
Specifically optimized for the assembly of custom-length PV wires. It ensures that the metal terminals are fully seated and the waterproof nut is tightened to the exact specification required for long-term outdoor performance.

Primary Use

This MC4 Connector Spanner Wrench Tool for Solar Panel is primarily used for extending solar panel photovoltaic wires, setting up solar generators, and maintaining high-voltage solar arrays. Whether you are building custom-length extension leads or securing factory-made leads to a combiner box, these wrenches provide the necessary leverage to ensure a weatherproof, IP-rated seal at every joint.

How to Use the MC4 Connector Wrench Tool?

● Step-by-Step Assembly

1. Position the Wrenches

Place the first wrench on the hexagonal base of the connector body to hold it steady. Position the second wrench on the cable gland nut at the rear of the connector.

2. Tighten the Connection

Hold the base wrench firmly while rotating the gland nut wrench clockwise. This "double wrench" method provides the necessary leverage to compress the internal waterproof seal without twisting the cable.

3. Verify the Seal

Continue tightening until the nut is fully seated against the body. A tight screw-down ensures an IP-rated weatherproof barrier that prevents moisture from reaching the electrical contacts.

● Step-by-Step Disassembly

1. Align the Unlock Pins

Locate the two prongs (pins) at the open end of the spanner. Insert these pins into the two side-locking slots on the male MC4 connector.

2. Compress the Locking Tabs

Press the wrench firmly into the slots to compress the internal plastic tabs. This releases the safety lock that holds the male and female connectors together.

3. Separate the Connectors

While the pins are depressing the tabs, pull the two connectors in opposite directions. They should slide apart easily without requiring excessive force or damaging the housing.

FAQ

Q: Will these wrenches work with different brands of solar connectors?
A: Yes, our MC4 Connector Spanner Wrench Tool for Solar Panel is designed based on standard MC4 specifications and are compatible with most major brands, including those using 1000V and 1500V architectures.

Q: Are plastic wrenches durable enough for industrial projects?
A: Absolutely. We use a high-strength, reinforced polymer that withstands high torque. Plastic is actually preferred over metal because it will not mar or crack the connector body during high-pressure tightening.

Q: Do I need two wrenches for every job?
A: While a single wrench can help with disconnecting, we strongly recommend using them as a pair for assembly. Using two wrenches is the only way to ensure the gland nut is tightened against the connector body without putting stress on the internal wire.
