MC4 Solar Panel Cable Connector Kit

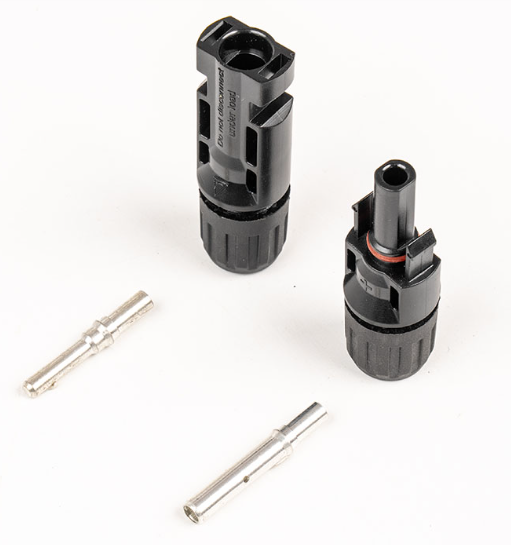

This quality MC4 Solar Panel Cable Connector Kit produced by Dsola is a dedicated solution for parallel wiring in residential and commercial solar systems.This MC4 Connector Set for Solar PV wire is engineered to merge power from separate strings into a single DC output, maintaining low contact resistance across all ports. It includes all necessary male/female housings, precision terminals, and assembly aids to ensure each connection meets professional electrical and mechanical standards. Each kit is built to withstand long-term harsh outdoor exposure, ensuring that your parallel connections remain safe and efficient for a long term. It is fully compatible with MC4 1500V DC Connector for Solar PV Cables specifications, providing ample safety margins for modern solar farms and commercial rooftops.

Advantages

● Plug-and-Play Efficiency
Designed for tool-free coupling, these MC4 Connectors for Solar Panels allow for rapid installation. The intuitive locking system ensures a secure connection with a simple click, significantly reducing labor time on-site.

● Durable Weatherproofing
Each MC4 Solar Panel Cable Connector Kit features a high-grade O-ring seal to meet IP67/IP68 standards. This prevents moisture and dust from entering the contact area, protecting the system against corrosion in humid or rainy environments.

● High Voltage and Current Support
Built as a reliable MC4 1500V DC Connector for Solar PV Cables, the kit handles high electrical pressure without overheating. This makes it suitable for modern high-efficiency panels and large-scale utility strings.

● UV and Flame Resistance
The housing is made from premium PPO/PC materials that resist UV degradation and extreme temperature fluctuations. It remains structurally sound and flame-retardant over a 25-year service life.

● Universal Branching Options
Whether you are using a Y-branch or T-branch configuration, this MC4 Photovoltaic Solar Panel Wire Connector kit supports flexible parallel setups, making it easier to manage complex panel layouts.

Application Scenarios

1. Residential Parallel Wiring
MC4 Solar Panel Cable Connector Kit is used to connect two or more panels in parallel to keep voltage low while increasing current, ideal for small-scale battery charging systems.

2. Commercial Rooftop Arrays
It can provide a streamlined way to merge multiple panel strings before they reach the combiner box or string inverter.

3. Off-Grid Power Systems
It is a critical component for RV, boat, and remote cabin solar setups where durable and easy-to-manage MC4 Type 1500V Solar Panel Connectors are required for mobility.

How a MC4 Solar Connector Kit Works?

The MC4 Solar Panel Cable Connector Kit works by acting as a junction point for DC power. When two solar panels are connected in parallel, the branch connectors join their positive leads together and their negative leads together. This keeps the output voltage the same as a single panel while doubling the output current. The internal copper busbar ensures that this combined current flows with minimal resistance, preventing heat buildup and power loss at the connection point.

Usage and Maintenance Notes

Always ensure that the panels being connected in parallel have the same voltage rating to prevent back-feeding and potential damage. Before finalizing the installation, verify that the connectors are fully seated and "clicked" into place to maintain the weatherproof seal. Periodically check for any physical damage or excessive dirt buildup around the locking tabs, although the connectors are designed to be maintenance-free for the life of the system.

Frequently Asked Questions

Q: Can I use this MC4 Solar Panel Cable Connector Kit with panels from different manufacturers?
A: Yes, as long as your panels use standard MC4-compatible interfaces, this kit will provide a secure and reliable connection regardless of the panel brand.

Q: What cable sizes are compatible with these connectors?
A: The kit is designed to accommodate standard solar wires, typically ranging from 2.5mm² to 6mm² (14AWG to 10AWG), ensuring a tight fit for most PV installations.

Q: Are these connectors rated for 1500V systems?
A: Absolutely. These are high-voltage rated components capable of supporting both 1000V and 1500V DC architectures, making them future-proof for modern high-efficiency arrays.

Parameters

SOLAR CONNECTOR SYSTEM
Technical data
Connector system				MC4 CONNECTING		Insulation material		PPO
Rated current				50A		Locking system plug connectors		Snap-in (nur/only MC4)
Rated voltage				1500V DC (IEC)		Flame class		UL94-HB / UL94-V0
Ambient temperature range				-40°C...+90°C (IEC) -40°C...+40°C (UL)		Safety class		II
Degree of protection, mated unmated				IP67 IP2X		Contact system		MC Multilam
Contact resistance of plug connectors				0,5mΩ		Type of termination Crimpen		Crimping
Contact material				Copper, tin plated		Cable Size		2.5mm2, 4mm2, 6mm2
Insertion Force /With Draw Force				<50N/>50N		Warranty		25 years
UNIT PRICE				RMB 2.5/PAIR,BASED ON THE MOQ OF 100K/MONTH
