An MC4 Connector Branch is a crucial component in solar power systems, designed to simplify and secure the connection of multiple solar panels in parallel or series. These connectors enable seamless integration of solar arrays, ensuring stable and efficient energy flow while maintaining safety standards.

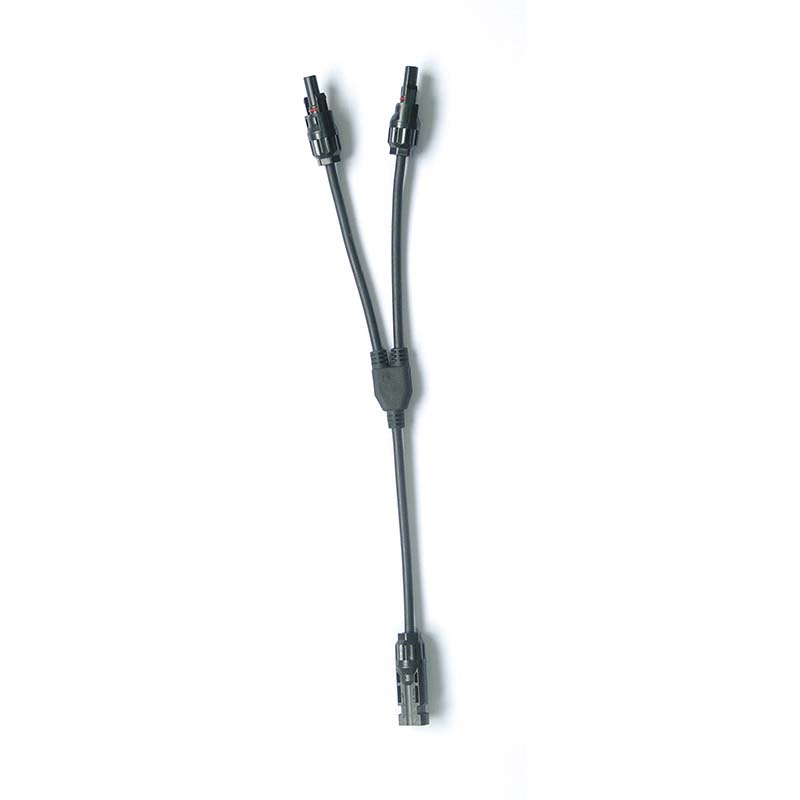

An MC4 Connector Branch is a type of multi-contact connector, typically shaped like a "Y" or "T" branch, that allows two or more solar panels to be connected together effortlessly. The "MC" stands for "Multi-Contact," and "4" refers to the 4mm diameter contact pin. These branches are weather-resistant, durable, and easy to use, making them a preferred choice for both residential and commercial solar installations.
🔌 Multiple Connections: Designed to connect two, three, or more solar panels together to form a larger solar array.
☀️ UV and Weather Resistant: Made from high-quality PPO material that resists harsh weather and UV radiation.
⚙️ Secure Locking Mechanism: Built-in snap-in locking system ensures firm connections and prevents accidental disconnection.
⚡ High Current & Voltage Capacity: Supports up to 1000V DC and 30A, suitable for high-performance solar systems.
💧 Waterproof Design: Rated IP67, ensuring dustproof and waterproof connections, ideal for outdoor use.
🛠️ Plug & Play Installation: Quick and tool-free installation with compatible MC4 solar panel connectors.
✅ Residential Solar Systems – To connect multiple rooftop solar panels efficiently.
✅ Commercial Solar Farms – Used to combine large arrays of solar modules for higher energy production.
✅ Off-grid Systems – Perfect for RVs, boats, and cabins to maximize solar energy capture.
✅ Solar Charging Stations – Useful in connecting multiple panels to battery storage units or inverters.
1. Time-Saving Installation – Simplifies the process of wiring multiple panels.
2. Enhanced Safety – Secure connections reduce the risk of short circuits and electrical faults.
3. Weatherproof Durability – Ideal for long-term outdoor use without degradation.
4. Versatile Configurations – Supports parallel and series connections, offering flexibility in system design.
5. Cost-Effective – Reduces the need for complex wiring and additional connectors.
The MC4 Connector Branch is an essential tool for building efficient and safe solar power systems. Its durability, ease of use, and high-performance capacity make it indispensable for modern solar installations. Whether you're expanding a residential setup or assembling a large-scale solar farm, MC4 branches ensure smooth and reliable connections.
🔋 Invest in high-quality MC4 Connector Branches to maximize your solar system's performance and safety.
