What Is an MC4 PV Connector and Why Is It Essential for Your Solar System?

The MC4 PV Connector is a standard solar connector widely used in photovoltaic (PV) systems to connect solar panels efficiently and safely. It ensures a reliable electrical connection, which is crucial for the performance and safety of solar installations. Ningbo Dsola New Energy Technical Co., Ltd. specializes in providing high-quality MC4 connectors that comply with international standards and guarantee durability in various environmental conditions.

Table of Contents

1. What Is an MC4 PV Connector?
2. Why Should You Use MC4 Connectors?
3. What Are the Different Types of MC4 Connectors?
4. How Do You Install an MC4 PV Connector?
5. What Are the Advantages of MC4 Connectors?
6. How to Troubleshoot MC4 PV Connector Issues?
7. Frequently Asked Questions (FAQ)
8. Conclusion

What Is an MC4 PV Connector?

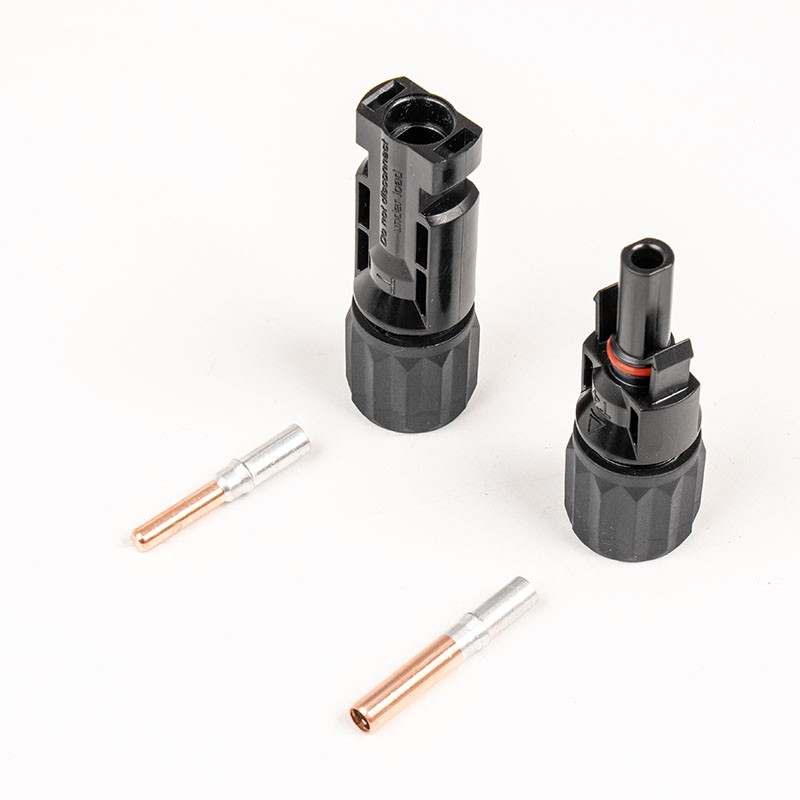

An MC4 PV Connector is a single-contact electrical connector used for connecting solar panels. MC4 stands for Mating Connector 4 mm, which refers to the 4 mm diameter contact pin. It is designed for easy installation and secure locking to maintain optimal electrical performance.

Key Features of MC4 PV Connectors

• Weather-resistant: UV-resistant, waterproof, and suitable for outdoor use
• High current-carrying capacity: Supports up to 30A and voltages up to 1000V+
• Easy to assemble: Tool-assisted crimping and locking mechanisms
• Standardized: Compatible with most solar panels and PV system components

Why Should You Use MC4 Connectors?

MC4 connectors are essential because they simplify PV system wiring and enhance safety. Without a reliable connector, your solar system could face energy losses, electrical shorts, or even fire hazards. Ningbo Dsola New Energy Technical Co., Ltd. ensures that their MC4 connectors meet rigorous quality standards to minimize such risks.

• Reliable electrical connection between solar panels
• Reduces the risk of accidental disconnections
• Ensures compatibility with industry-standard solar components
• Supports system longevity in harsh environments

What Are the Different Types of MC4 Connectors?

MC4 connectors come in various types, each designed for specific applications in solar installations. Below is a table summarizing the main types:

How Do You Install an MC4 PV Connector?

Proper installation of MC4 connectors is vital to ensure safety and efficiency. Ningbo Dsola New Energy Technical Co., Ltd. recommends the following steps:

1. Strip the cable insulation by 6–7 mm without damaging the conductor.
2. Insert the wire into the MC4 contact pin and crimp using the proper crimping tool.
3. Insert the pin into the MC4 housing until a click is heard.
4. Connect the male and female connectors until they securely lock.
5. Use a multimeter to test for continuity and proper voltage.

Installation Tips

• Always check the polarity before connecting panels.
• Ensure the connectors are fully clicked to avoid loose connections.
• Regularly inspect connectors for corrosion or damage.

What Are the Advantages of MC4 Connectors?

MC4 PV connectors offer numerous advantages for residential, commercial, and industrial solar systems:

• Durable and weather-resistant for long-term outdoor use
• Reduces installation time with plug-and-play design
• Ensures safety by preventing accidental disconnections
• Maintains high electrical performance even under extreme temperatures

How to Troubleshoot MC4 PV Connector Issues?

Even the most reliable connectors can face issues. Common problems include:

• Loose Connection: Re-insert and ensure a secure click.
• Corrosion: Clean terminals or replace connectors.
• Overheating: Check current rating and ensure proper load.

Frequently Asked Questions (FAQ)

Conclusion

The MC4 PV Connector is an indispensable component in modern solar systems, offering reliability, safety, and efficiency. Choosing high-quality connectors from reputable manufacturers like Ningbo Dsola New Energy Technical Co., Ltd. ensures long-term system performance. Whether you are installing a small residential system or a large commercial PV plant, MC4 connectors are essential for seamless energy production.

For high-quality MC4 connectors and professional solar solutions, contact us at Ningbo Dsola New Energy Technical Co., Ltd. today!
