The Solar Cable Connector MC4 is a crucial component in photovoltaic systems. This article explores its importance, applications, installation tips, and troubleshooting methods. Whether you are a solar installer or a homeowner, understanding MC4 connectors ensures system safety, reliability, and efficiency.
Table of Contents
- Introduction to MC4 Solar Cable Connectors
- Why MC4 Connectors Are Vital
- Types of MC4 Connectors
- Installation and Maintenance Tips
- Common Issues and Troubleshooting
- MC4 vs Other Solar Connectors
- FAQ
- Contact Ningbo Dsola New Energy Technical Co., Ltd.
Introduction to MC4 Solar Cable Connectors

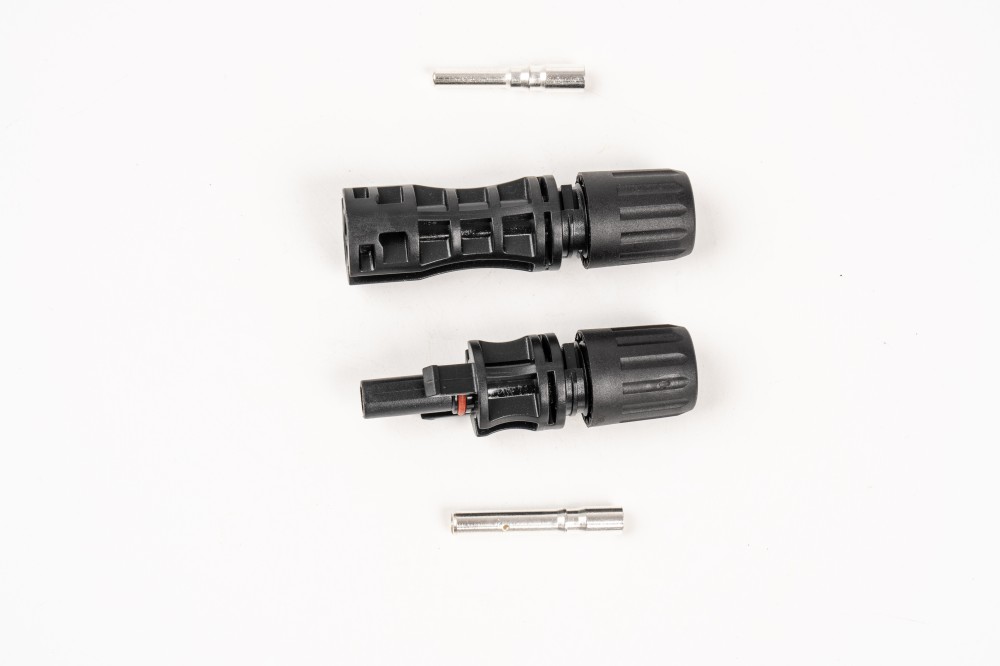

The MC4 (Multi-Contact, 4mm) solar cable connector is the industry standard for connecting photovoltaic panels. These connectors are designed for high-voltage DC solar systems and provide a secure, weatherproof connection. Their design ensures ease of installation and prevents disconnection under load.
Key Features:
- Weather-resistant and UV-protected for outdoor use
- Reliable electrical contact to reduce energy loss
- Tool-free or simple tool assembly options
- Compatible with most PV cables (2.5mm² to 6mm²)
Why MC4 Connectors Are Vital
MC4 connectors are not just convenience items; they play a critical role in system safety and efficiency. Proper connections reduce the risk of short circuits, fire hazards, and energy loss.
Benefits include:
- Durable and long-lasting, reducing maintenance costs
- Ensures high electrical conductivity
- Enables quick system expansion or reconfiguration
- Prevents water ingress, ensuring IP67 protection
Types of MC4 Connectors
MC4 connectors come in various types to suit different installation requirements:
| Connector Type | Voltage Rating | Current Rating | Applications |
|---|---|---|---|
| Standard MC4 | 1000V DC | 30A | Residential and commercial PV systems |
| MC4 T-Branch | 1000V DC | 20A | Parallel panel connections |
| MC4 Compatible | 1500V DC | 50A | Large-scale solar farms |
Installation and Maintenance Tips
Proper installation ensures optimal performance and safety:
- Always strip the cable to the correct length and ensure no wire strands are loose.
- Insert the stripped cable fully into the connector until it clicks.
- Check polarity carefully to avoid reverse connection.
- Use a torque wrench if specified to secure the connection.
- Regularly inspect connectors for corrosion or damage.
Tip: Use MC4 connectors with built-in safety locks for systems exposed to strong winds or frequent vibration.
Common Issues and Troubleshooting
Even high-quality MC4 connectors can encounter issues:
- Poor Contact: Check for debris or loose wire strands.
- Corrosion: Ensure IP67-rated connectors are properly sealed.
- Disconnection: Use locking clips to prevent accidental unplugging.
- Voltage Drops: Verify proper cable sizing and connections.
MC4 vs Other Solar Connectors
Compared to other connectors, MC4 offers:
| Feature | MC4 | Other Connectors |
|---|---|---|
| Weather Resistance | High (IP67) | Medium |
| Ease of Installation | High | Low to Medium |
| Industry Standard | Yes | No |
| Safety Features | Integrated locking | Limited |
FAQ
- Q1: Can MC4 connectors be reused?
- A: Yes, they can be reused if not damaged, but always ensure they maintain a secure connection.
- Q2: Are MC4 connectors waterproof?
- A: Most MC4 connectors are IP67-rated, which means they are resistant to water and dust.
- Q3: What cable sizes are compatible with MC4 connectors?
- A: Typically, MC4 connectors support 2.5mm² to 6mm² PV cables.
- Q4: Can MC4 connectors handle high voltage?
- A: Standard MC4 connectors handle up to 1000V DC, while some advanced versions support up to 1500V DC.
Contact Ningbo Dsola New Energy Technical Co., Ltd.
Our experienced team is ready to provide professional product recommendations, technical support, and customized solutions tailored to your specific requirements.
Contact Ningbo Dsola New Energy Technical Co., Ltd. today to learn more about our comprehensive range of solar connectivity products and discover how we can help power your renewable energy success.
