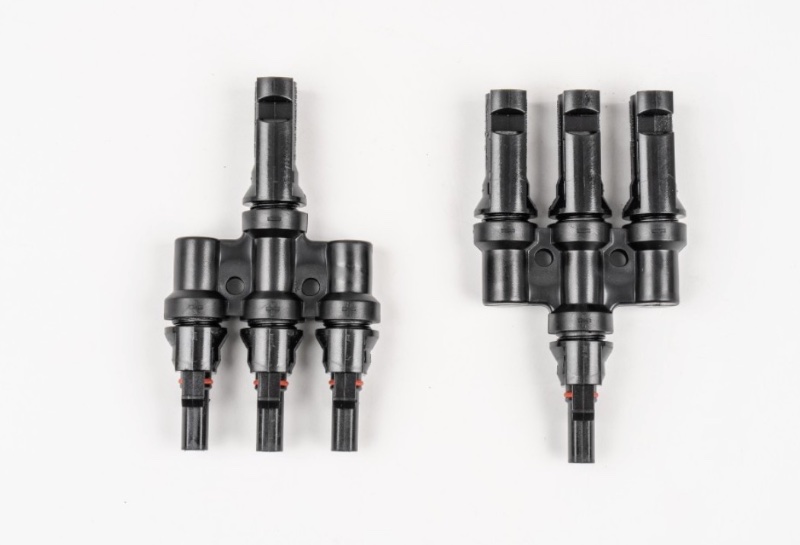

Solar Panel Branch Connector 3 to 1 for Photovoltaic System

Product Introduction

This high quality Solar Panel Branch Connector 3 to 1 for Photovoltaic System by Dsola is a precision-engineered T-style splitter designed for modern DC solar arrays. This Solar MC4 PV Connector T-Branch 3 to 1 Splitter provides a robust interface for grouping multiple modules, effectively reducing the amount of cabling required to reach the inverter or combiner box. Every unit is built to sustain a secure electrical bond to ensure its that power loss is minimized while maximize the power output of the solar system.

Product Advantages

● Premium Material Engineering
Constructed from high-grade PPO material, the T Style Solar Panel Branch Connector 3 to 1 features superior anti-oxidation and flame-retardant properties. It is built to endure intense UV exposure and corrosive atmospheres without degrading.

● Certified Tinned Copper Contacts
The internal contacts are made of high-conductivity copper with a tinned finish to prevent surface oxidation. This ensures a stable, low-resistance path for the current, maintaining system efficiency over decades of use.

● Tool-Free Self-Locking System
Equipped with a built-in snap-lock mechanism, the MC4 Compatible 3 to 1 T Branch Connectors MMMF and FFFM Pair allows for instant, secure coupling. The plugs lock firmly in place by hand, eliminating the need for specialized installation tools while preventing accidental disconnects.

● Wide Temperature Resilience
Designed for global climates, these connectors operate reliably in extreme conditions ranging from -40°C to 85°C (-40°F to 185°F). The structural integrity remains intact whether installed in freezing high-altitude regions or scorching desert solar farms.

● Weatherproof and IP Rated Seal
Each branch point is protected by a high-quality sealing ring that blocks dust and moisture. This creates a waterproof barrier that protects the electrical terminals from short circuits and long-term humidity damage.

Application Scenarios

1. Residential Rooftop Installations
This Solar Panel Branch Connector 3 to 1 for Photovoltaic System is perfect for homeowners looking to increase their system's current by connecting three panels in parallel to match the input specifications of a specific battery charger or inverter.

2. Commercial PV Arrays
A reliable choice for large-scale warehouse roofs where the T Branch 3 to 1 Connector Parallel Solar Panel Cable Connectors are used to simplify wiring layouts and reduce the number of individual cable runs.

3. Off-Grid Power Stations
Essential for remote solar sites and portable power configurations that require a dependable way to merge power from multiple folding panels or ground-mounted strings.

How the 3-to-1 T-Branch Connector Works?

This Solar Panel Branch Connector 3 to 1 for Photovoltaic System acts as a central junction for DC energy. It allows you to link the positive leads of three separate solar panels together and do the same for the negative leads. By grouping these inputs, the connector maintains the voltage of a single panel while tripling the output current. The internal busbar architecture ensures this combined electrical load is distributed evenly, preventing hotspots and ensuring that all captured solar energy is delivered efficiently to the power storage unit.

Safety Guidelines

Electrical Compatibility
Always verify that the panels connected to the branch have identical voltage ratings. Connecting panels with different voltages can cause current to back-flow into the weaker modules, leading to power loss or hardware damage.

Confirm Locking Engagement
Ensure that each male and female plug is fully inserted until the locking tabs snap into place. A loose connection increases electrical resistance and can lead to thermal damage or moisture entry.

Current Rating Limits
Check that the total combined current from the three panels does not exceed the maximum rated current of the connector or the downstream wiring. Overloading the circuit can result in wire overheating and potential fire hazards.

Avoid Physical Strain
Do not allow the weight of the cables to pull directly on the branch connector. Use zip ties or mounting clips to support the wire weight, ensuring the connector sits naturally without tension on its seals.
