I’ve been in the solar industry long enough to hear the same story time and again. A client comes to us, frustrated that their solar array isn’t performing as expected, or worse, they’ve experienced a complete failure. Nine times out of ten, when we trace the problem back, it leads to a critical but often overlooked component—the Solar PV Junction Box. The conversation usually starts with, "But I found a cheaper option online," and that’s precisely the problem. When we at Dsola set out to design our flagship Solar PV Junction Box, we didn't start with a cost target; we started with a reliability target. So, what are you really paying for when you invest in a high-quality Solar PV Junction Box? Let's break it down, not just in dollars and cents, but in performance, safety, and long-term peace of mind.
I get it. Budgets are tight, and in a competitive market, the lowest price is tempting. However, the junction box is the heart of your solar panel's electrical system. It’s where the strings of cells converge and where the DC output is channeled. A cheaply made box is a liability, not an asset.
Think of it this way: this small box is permanently mounted on the back of your panel, exposed to extreme temperature swings, UV radiation, rain, snow, and humidity for 25 years or more. A low-quality box might save you a few dollars upfront, but what is the cost of a system shutdown? What is the cost of replacing a panel because its junction box failed and damaged the cells? What is the cost of a potential fire hazard? The initial purchase price is just a fraction of the total cost of ownership. Investing in a robust Solar PV Junction Box, like the ones we engineer at Dsola, is your insurance policy against these catastrophic and costly failures.
A high-quality Solar PV Junction Box isn't defined by a single feature but by a combination of superior materials, intelligent engineering, and rigorous testing. It’s the synergy of these elements that creates a product you can install and forget about for decades. Let’s look at the core parameters that separate a premium product from a substandard one.
Here is a detailed list of the non-negotiable features we built into every Dsola junction box:
Low-Profile, Weatherproof Housing: Our housing is made from high-grade PPO material, which offers exceptional resistance to UV exposure and extreme temperatures, preventing cracking or warping over time.
Advanced Potting Technology: We use a soft silicone gel that completely encapsulates the diodes and internal connections. This protects against thermal stress, prevents corrosion from moisture ingress, and provides superior heat dissipation.
High-Current Bypass Diodes: We exclusively use Schottky diodes known for their low forward voltage drop. This minimizes power loss and heat generation under shading conditions, directly boosting your overall energy yield.
Precision-Machined Contact Points: Our terminals are made of tinned copper to prevent oxidation, ensuring a stable, low-resistance connection that won't degrade over 25+ years.
IP68 Rated Sealing: This isn't just a claim on a datasheet. Every box is tested to withstand being submerged in water, guaranteeing protection against the harshest weather conditions.

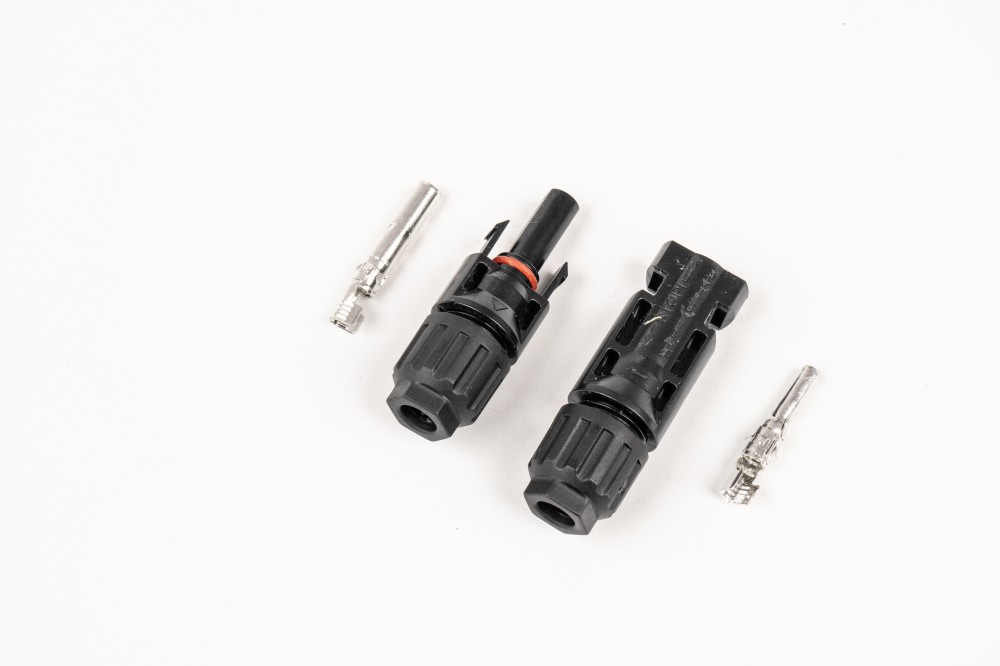

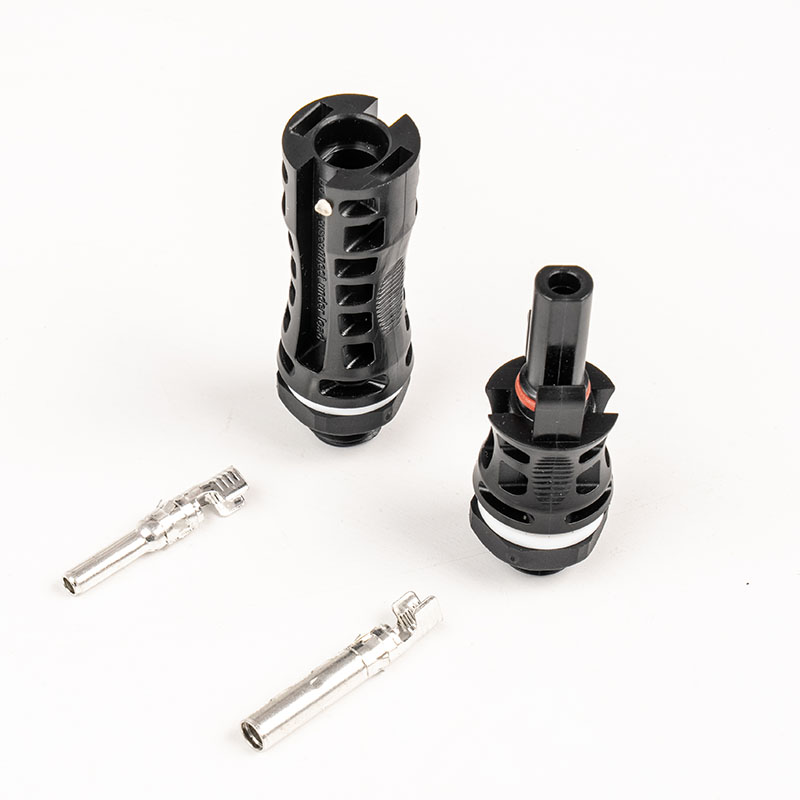

Easy-to-Use Connectors: Our MC4-compatible connectors feature a secure locking mechanism and are designed for a perfect, weather-tight seal with any major brand of cable.
To give you a clearer picture of how these features translate into performance, let's compare a generic box with a Dsola box across key parameters.
| Feature | Generic Junction Box | Dsola Junction Box |
|---|---|---|
| Housing Material | Standard Nylon (can become brittle) | High-Grade PPO (UV & impact resistant) |
| Ingress Protection | IP67 (Temporary immersion) | IP68 (Prolonged immersion) |
| Bypass Diode Type | Standard PN Junction Diode | Schottky Diode (Lower voltage drop) |
| Heat Resistance | Up to 85°C | Up to 105°C (Continuous) |
| Cable Grip Strength | Standard | > 80N (Exceptional pull-out resistance) |
Specifications on a sheet are meaningless if they don't translate into real-world benefits for your solar project. The technical superiority of our Solar PV Junction Box is directly linked to three critical outcomes: higher energy production, unparalleled safety, and absolute long-term reliability.
The choice of Schottky bypass diodes is a perfect example. A standard diode might have a forward voltage drop of 0.7V, while our Schottky diodes have a drop of only 0.45V. This might seem small, but when a panel is partially shaded and the diode is actively bypassing a cell string, that lower voltage drop means less power is dissipated as heat and more is delivered to your inverter. Over the life of a large system, this difference adds up to significant, recoverable energy.
Furthermore, our IP68 rating and advanced potting are your guarantees against the number one killer of junction boxes: moisture. I've seen too many un-potted or poorly potted boxes fail after a few seasons because internal condensation led to corroded terminals and, eventually, arcing. Our potting process eliminates any air pockets, creating a hermetic seal that locks out humidity and stabilizes the internal components against the daily thermal expansion and contraction cycles.
To make the value even clearer, let's look at a direct cost-benefit analysis based on the core differentiators.
| Investment Factor | Dsola Premium Junction Box | Long-Term Value & Cost Saving |
|---|---|---|
| Initial Unit Price | Higher | Justified by superior materials and manufacturing processes. |
| Energy Efficiency | Higher yield due to low-loss diodes. | Generates more revenue over the system's lifetime. |
| Maintenance & Downtime | Near-zero failure rate. | Eliminates cost of panel replacement and service calls. |
| System Longevity | Designed and tested for a 30-year lifespan. | Protects your capital investment in the entire solar array. |
Over the years, my team and I have fielded thousands of questions. Here are three of the most frequent and detailed questions we receive about the Solar PV Junction Box.
What happens if a bypass diode inside my Solar PV Junction Box fails
A failed diode typically fails in one of two ways: it either short-circuits or open-circuits. If it short-circuits, the string of cells it protects will be permanently bypassed, causing a significant and permanent drop in that panel's output. If it fails open, the diode ceases to provide a bypass path. Then, if those cells become shaded, they will overheat, creating a hot spot that can permanently damage the solar cells and even become a fire hazard. This is why the quality and heat dissipation of the diode are so critical.
How do I know if my existing Solar PV Junction Box needs to be replaced
There are several clear indicators. The most obvious is visible physical damage to the box itself, such as cracking, melting, or discoloration. Another is if your monitoring system shows a specific panel has a massive drop in output or is registering zero. Thermographic (thermal imaging) scans are also excellent for this; a malfunctioning junction box will often show up as a significant hot spot on the back of the panel. If you see any of these signs, it's time for a replacement.
Can I upgrade my older solar panels with a newer, more efficient Solar PV Junction Box
In many cases, yes, and it can be a very cost-effective way to improve the reliability and performance of existing panels. The process involves carefully delaminating the old box from the back sheet, disconnecting the cell ribbons, and properly attaching a new, high-quality box like one from Dsola. It requires skill and the right equipment to ensure a perfect seal, so it's a job best left to certified solar technicians. The performance payoff, however, especially if the original box was inferior, can be substantial.
Chasing the lowest price is a race to the bottom, especially for a component as critical as the junction box. The true cost of a high-quality Solar PV Junction Box isn't an expense; it's a strategic investment in the resilience, efficiency, and longevity of your entire solar power system. It’s the assurance that your project will perform as designed, year after year, without unexpected failures or dangerous situations.
At Dsola, we've poured our two decades of field experience into every single box we produce. We've seen what fails and, more importantly, we understand why. That knowledge is baked into our design, our material selection, and our manufacturing process. Don't let a small, inexpensive component become the single point of failure for your valuable solar asset.
Contact us today for a detailed quotation or to consult with our technical experts. Let us provide you with a Solar PV Junction Box solution that eliminates risk and maximizes your return on investment. Visit our website or send us a direct email to discuss your project specifications.
