Applicable voltage range: 600 volts to 1500 volts. The calculation scope includes various current loads and cable lengths, fulfilling the design requirements of residential rooftop PV systems and small commercial PV systems. The product is lightweight and portable, supports various measurement units, and delivers calculation results rapidly. The housing, made of durable materials, is waterproof, dustproof, and suitable for field operations.
The Solar Cable Calculator aids users in precisely choosing cable specifications, minimizing power loss, and ensuring the efficient functioning of PV systems. The product enables quick input and calculation, offering photovoltaic system designers and installers an easy-to-use tool that enhances wiring efficiency and safety.
The product is easy and intuitive to use, offering quick calculations and high precision. The compact design ensures its suitability for field transport and operation. It facilitates computations for diverse voltages, currents, and cable categories. The packaging adheres to export standards, enabling sales to wholesalers, distributors, and cross-border e-commerce platforms.
Appropriate for residential rooftop photovoltaic systems, small commercial solar power stations, outdoor portable photovoltaic devices, and diverse solar energy applications. The Solar Cable Calculator aids photovoltaic system designers and installers in swiftly choosing suitable cable specifications, ensuring the system operates stably over the long term. Professional export packaging ensures safe transportation, enabling use by overseas customers and cross-border sales.

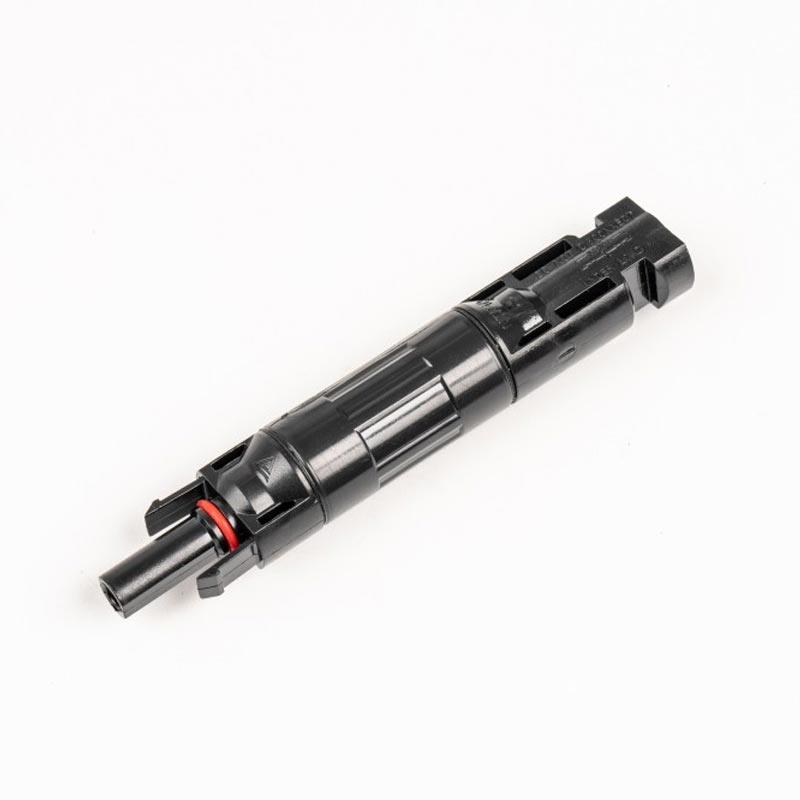

| Connector system | MC4 CONNECTING | Insulation material | PC |
| Rated current | Certitied by 30A | Locking system plug connectors | Snap-in (nur/only MC4) |
| Rated voltage | 1000V DC (IEC) | Flame class | UL94-HB / UL94-V0 |
| Ambient temperature range | -40°C...+90°C (IEC)-40°C...+40°C (UL) | Safety class | II |
| Degree of protection, matedunmated | IP67IP2X | Contact system | MC Multilam |
| Contact resistance of plug connectors | 0,5mΩ | Type of termination Crimpen | Crimping |
| Contact material | Copper, tin plated | Cable Size | 2.5mm2, 4mm2, 6mm2 |
| Insertion Force /With Draw Force | <50N/>50N | Warranty | 25 years |
