The product supports voltages up to 1000 volts and handles rated currents between 20 and 40 amps, making it adaptable for a range of PV system requirements. Made from high-quality copper, the conductors ensure efficient power transmission through reduced contact resistance. The shell is made from materials that resist high temperatures, fire, and UV exposure, reaching an IP67 protection rating for reliable performance in rainy and dusty conditions over time. The product has a small design that makes installation and wiring easier.

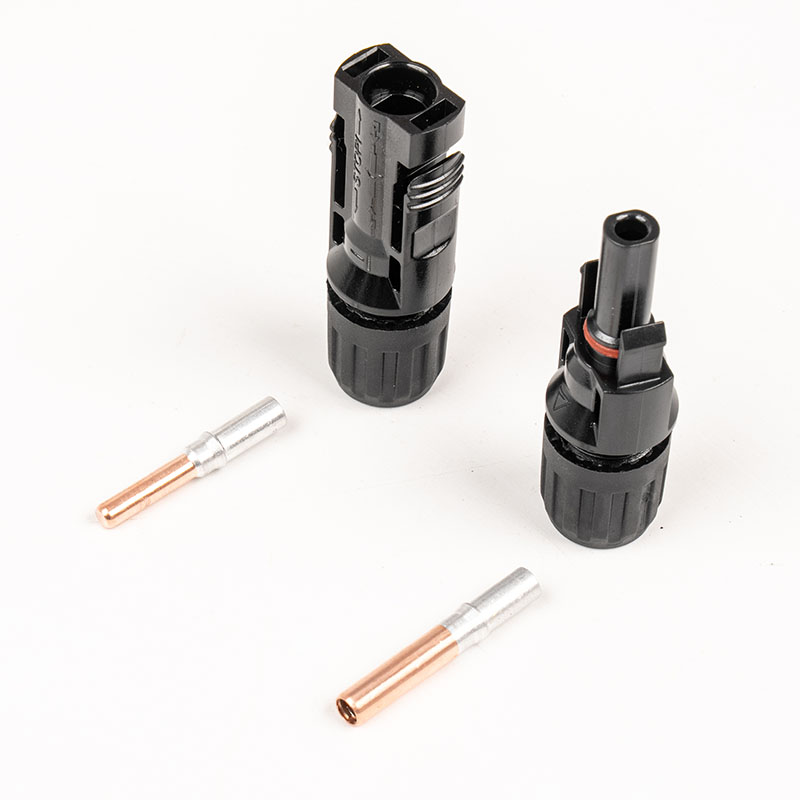

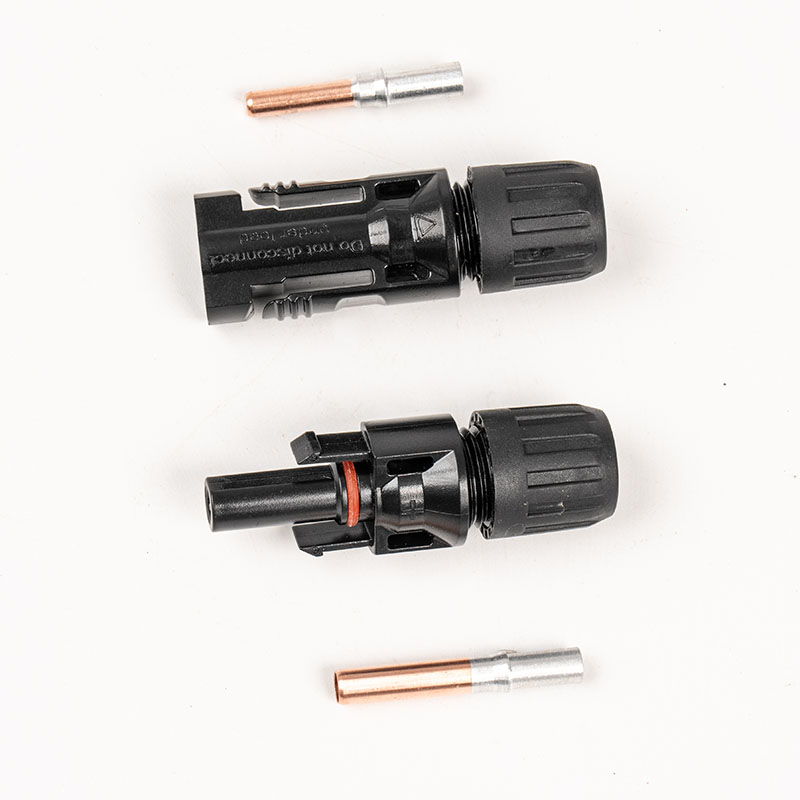

The Solar Cable Connector 1000v ensures a reliable power connection for solar modules, supporting the effective performance of photovoltaic systems. The device features a sealed, waterproof design, ensuring safe and reliable operation in challenging outdoor conditions over extended periods. The product enables easy plug-and-play operation, which simplifies the installation, maintenance, and replacement processes for photovoltaic systems.
The product body consists of fire-resistant engineering plastic, which withstands high temperatures and UV radiation, making it appropriate for outdoor applications. The copper conductor's low impedance facilitates efficient power transmission. The waterproof, sealed structure extends service life. The product allows for OEM customization and export packaging, meeting international market demands and aiding wholesalers and cross-border e-commerce in boosting sales.
Appropriate for residential rooftop PV systems, large-scale PV plants, outdoor mobile PV devices, and diverse solar energy applications. The Solar Cable Connector 1000v ensures a secure and efficient electrical connection for solar panels, supporting the reliable and consistent performance of photovoltaic installations over time. Proper export packaging guarantees secure transit, enabling smoother sales for international wholesalers and distributors.
| Connector system | MC4 CONNECTING | Insulation material | PC |
| Rated current | Certitied by 30A | Locking system plug connectors | Snap-in (nur/only MC4) |
| Rated voltage | 1000V DC (IEC) | Flame class | UL94-HB / UL94-V0 |
| Ambient temperature range | -40°C...+90°C (IEC)-40°C...+40°C (UL) | Safety class | II |
| Degree of protection, matedunmated | IP67IP2X | Contact system | MC Multilam |
| Contact resistance of plug connectors | 0,5mΩ | Type of termination Crimpen | Crimping |
| Contact material | Copper, tin plated | Cable Size | 2.5mm2, 4mm2, 6mm2 |
| Insertion Force /With Draw Force | <50N/>50N | Warranty | 25 years |
