Meeting the requirements of residential, commercial, and industrial photovoltaic systems, the product is applicable to voltage ranges between 600 volts and 1500 volts as well as rated currents spanning from 20 amps to 50 amps. Ensuring low resistance and efficient, stable power transmission, the conductors are fabricated from high-purity copper with exceptional electrical conductivity. With an IP67 protection rating, the shell material, which is fire-retardant, high-temperature resistant, and UV resistant, ensures safe usage in rainy, dusty, and outdoor environments. The compact design facilitates installation and wiring.
Ensuring efficient operation of photovoltaic systems, connecting solar cables are designed to provide a stable power connection for solar modules. Ensuring long-term safety and reliability in outdoor environments, the design features a waterproof and sealed configuration. Facilitating the wiring and expansion of various photovoltaic systems, the quick-plug design significantly enhances the ease of installation and maintenance through its innovative configuration.
Encased in a fire-resistant engineering plastic shell, the product demonstrates robustness and durability, withstanding high temperatures and UV exposure while maintaining its structural integrity. The low impedance of the copper conductors ensures efficient power transmission. The compact and lightweight design makes it easy to carry and install. Supported by OEM customization and export packaging, the products meet international market standards while facilitating utilization by wholesalers and cross-border e-commerce platforms.
Appropriate for residential rooftop photovoltaic systems, commercial photovoltaic power plants, outdoor mobile photovoltaic equipment, and a variety of solar energy applications. Ensuring long-term stable operation of the photovoltaic system, Connecting Solar Cables offer a secure and dependable power connection specifically designed for photovoltaic modules. Facilitating sales to overseas customers, distributors, and cross-border e-commerce, professional export packaging ensures the safe transportation of goods while meeting international shipping standards.

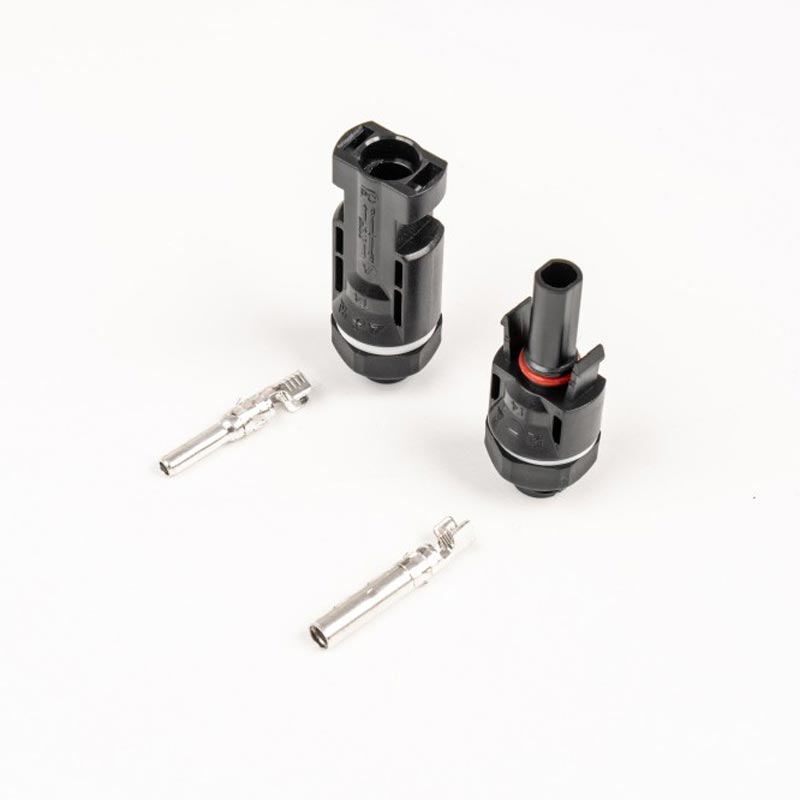

| Connector system | MC4 CONNECTING | Insulation material | PC |
| Rated current | Certitied by 30A | Locking system plug connectors | Snap-in (nur/only MC4) |
| Rated voltage | 1000V DC (IEC) | Flame class | UL94-HB / UL94-V0 |
| Ambient temperature range | -40°C...+90°C (IEC)-40°C...+40°C (UL) | Safety class | II |
| Degree of protection, matedunmated | IP67IP2X | Contact system | MC Multilam |
| Contact resistance of plug connectors | 0,5mΩ | Type of termination Crimpen | Crimping |
| Contact material | Copper, tin plated | Cable Size | 2.5mm2, 4mm2, 6mm2 |
| Insertion Force /With Draw Force | <50N/>50N | Warranty | 25 years |
