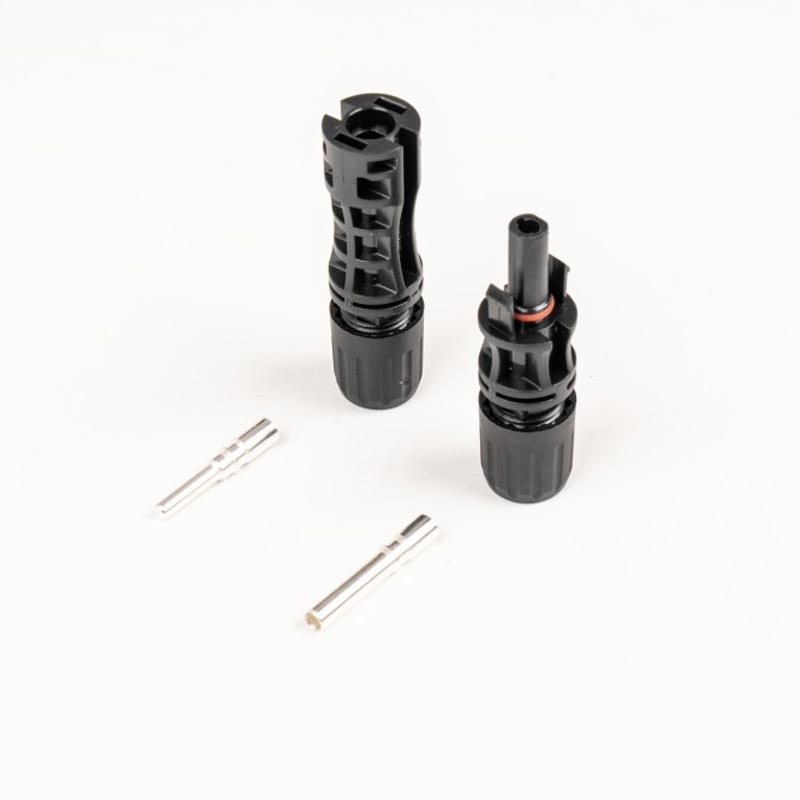

Solar Cable Connector Types

Applicable to both residential and commercial photovoltaic systems, the products are designed for voltage ranges spanning from 600 volts to 1500 volts and rated currents varying between 20 amps and 50 amps. Ensuring efficient power transmission, the conductors, which are made of high-quality copper with low resistance, play a crucial role in minimizing energy loss. With an IP67 protection rating, the shell material exhibits fire-resistant, high-temperature resistant, and UV resistant properties, thereby enabling stable performance in rainy and dusty environments. The compact design facilitates wiring and installation.

Functions

Solar Cable Connector Types provide a stable power connection for solar modules. To meet the diverse wiring requirements of photovoltaic systems, different connector types facilitate rapid plugging and unplugging as well as flexible expansion. Waterproof and dustproof design ensures safe long-term outdoor use.

Features

Composed of fire-resistant engineering plastics, the product features a robust and durable structure that exhibits resistance to both high temperatures and UV radiation. Ensuring efficient power transmission, the copper conductor exhibits low impedance characteristics. Multiple design types adapt to various photovoltaic modules and system requirements. Supported by OEM customization and export packaging, which conform to international market standards, the process facilitates both wholesalers and cross-border e-commerce sales.

Applications

Appropriate for residential rooftop photovoltaic systems, large-scale photovoltaic power plants, outdoor mobile photovoltaic equipment, and a variety of solar energy applications. Ensuring the long-term stable operation of photovoltaic systems, Solar Cable Connector Types offer a secure and dependable power connection for photovoltaic modules. Facilitating overseas customers, distributors, and cross-border e-commerce sales, professional export packaging ensures the safe transportation of goods while meeting international logistics standards.

SOLAR CONNECTOR SYSTEM

Technical data

Connector system	MC4 CONNECTING	Insulation material	PC
Rated current	Certitied by 30A	Locking system plug connectors	Snap-in (nur/only MC4)
Rated voltage	1000V DC (IEC)	Flame class	UL94-HB / UL94-V0
Ambient temperature range	-40°C...+90°C (IEC)-40°C...+40°C (UL)	Safety class	II
Degree of protection, matedunmated	IP67IP2X	Contact system	MC Multilam
Contact resistance of plug connectors	0,5mΩ	Type of termination Crimpen	Crimping
Contact material	Copper, tin plated	Cable Size	2.5mm2, 4mm2, 6mm2
Insertion Force /With Draw Force	<50N/>50N	Warranty	25 years
