The product is compatible with voltages ranging from 1000 to 1500 volts and rated currents between 20 and 50 amps, fulfilling the power needs of diverse residential and commercial PV systems. The conductors, crafted from high-quality copper, exhibit low contact resistance, thereby ensuring efficient power transmission. The housing, constructed from fire-resistant, high-temperature resistant, and UV-resistant materials, achieves an IP67 protection rating, ensuring safety in rainy and dusty environments. The compact design eases installation and wiring.

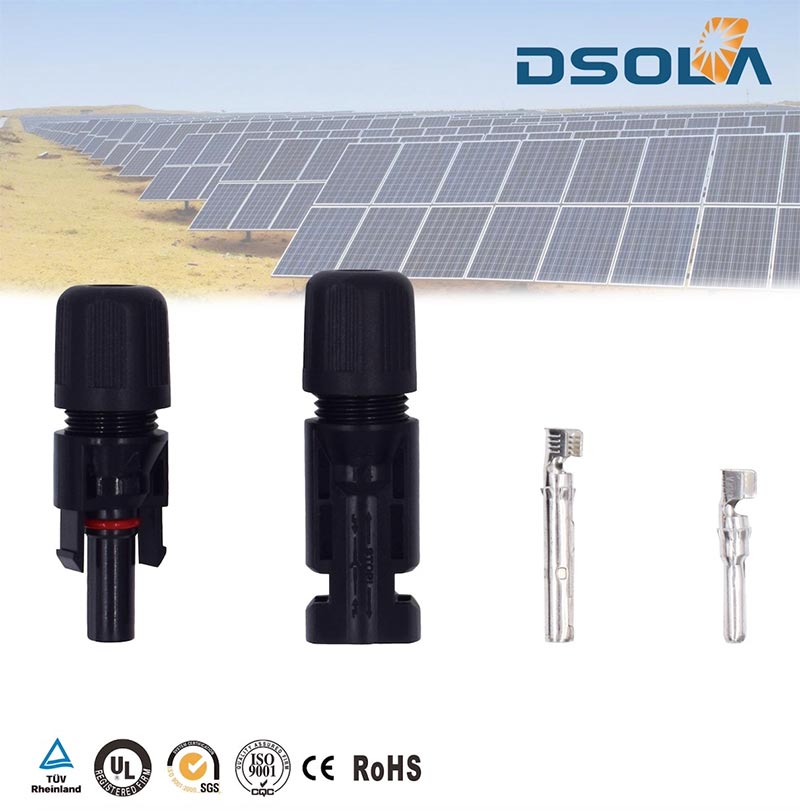

The Solar Cable Connector with TUV Certification ensures a reliable power connection for solar panels, supporting the effective performance of photovoltaic systems. Its waterproof and sealed design ensures safe and reliable use in rainy or humid conditions. The quick-plug design eases the installation, maintenance, and replacement of photovoltaic systems and is ideal for wiring diverse photovoltaic devices.
The product body is constructed from fire-resistant engineering plastics, forming a sturdy and durable structure that withstands high temperatures and UV radiation. The low impedance of copper conductors ensures efficient power transmission. The waterproof and sealed design prolongs its service life. OEM customization and export packaging are available to meet international market demands, aiding wholesalers and cross-border e-commerce in boosting sales.
Appropriate for residential rooftop photovoltaic systems, large-scale photovoltaic plants, outdoor mobile photovoltaic devices, and diverse solar energy applications. The Solar Cable Connector with TUV Certification ensures a secure, dependable, and efficient power connection for solar modules, guaranteeing the long-term stability of photovoltaic systems. Professional export packaging ensures safe transportation and aids sales for overseas wholesalers, distributors, and cross-border e-commerce businesses.
| Connector system | MC4 CONNECTING | Insulation material | PC |
| Rated current | Certitied by 30A | Locking system plug connectors | Snap-in (nur/only MC4) |
| Rated voltage | 1000V DC (IEC) | Flame class | UL94-HB / UL94-V0 |
| Ambient temperature range | -40°C...+90°C (IEC)-40°C...+40°C (UL) | Safety class | II |
| Degree of protection, matedunmated | IP67IP2X | Contact system | MC Multilam |
| Contact resistance of plug connectors | 0,5mΩ | Type of termination Crimpen | Crimping |
| Contact material | Copper, tin plated | Cable Size | 2.5mm2, 4mm2, 6mm2 |
| Insertion Force /With Draw Force | <50N/>50N | Warranty | 25 years |
