The product accommodates voltages between 600 and 1000 volts and currents ranging from 20 to 40 amps, making it suitable for residential and small commercial PV systems. The high-purity copper conductor shows low contact resistance, ensuring efficient and stable power transmission. The sheath material is fire-resistant, tolerates high temperatures, and resists UV rays. It has an IP67 rating, ensuring safe use in rain, dust, and challenging environments. Cables of various lengths are obtainable to meet different installation requirements.
Solar Cable offers a reliable power connection for solar panels, ensuring the effective operation of photovoltaic systems. The design, which is both waterproof and UV-resistant, ensures long-term safety and reliability in outdoor settings. The adaptable cable design eases wiring, installation, and upkeep, fulfilling the varied demands of residential and commercial photovoltaic setups.
The product features a fire-resistant engineering plastic outer sheath, capable of withstanding high temperatures and UV radiation, making it ideal for long-term outdoor use. The copper conductor's low impedance ensures efficient power transmission. The sturdy and long-lasting structure is also lightweight and simple to install. OEM customization and export packaging are provided to address global market needs, aiding wholesalers and cross-border e-commerce applications.
Appropriate for residential rooftop photovoltaic systems, small commercial solar power stations, outdoor portable photovoltaic devices, and various solar energy applications. Solar Cable offers a dependable and steady power link for photovoltaic modules, ensuring enduring system stability. Professional export packaging ensures safe transportation, aiding sales to overseas customers, distributors, and cross-border e-commerce.

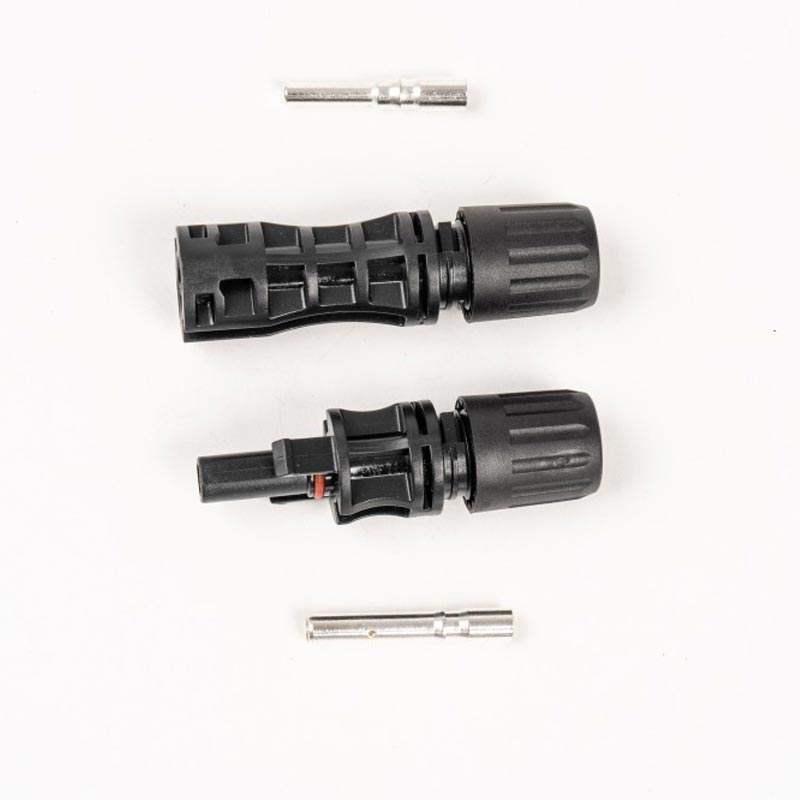

| Connector system | MC4 CONNECTING | Insulation material | PC |
| Rated current | Certitied by 30A | Locking system plug connectors | Snap-in (nur/only MC4) |
| Rated voltage | 1000V DC (IEC) | Flame class | UL94-HB / UL94-V0 |
| Ambient temperature range | -40°C...+90°C (IEC)-40°C...+40°C (UL) | Safety class | II |
| Degree of protection, matedunmated | IP67IP2X | Contact system | MC Multilam |
| Contact resistance of plug connectors | 0,5mΩ | Type of termination Crimpen | Crimping |
| Contact material | Copper, tin plated | Cable Size | 2.5mm2, 4mm2, 6mm2 |
| Insertion Force /With Draw Force | <50N/>50N | Warranty | 25 years |
